In recent years, with the rapid development of 5G, artificial intelligence and other technologies, the importance of the semiconductor industry has become increasingly prominent. Silicon, as the core material of semiconductor manufacturing, has also received more attention. China's silicon material production has also entered a new stage with the rapid development of semiconductor industry. In addition, with the intervention of large state funds and a series of industrial policies to promote the localization of semiconductor key equipment and materials, the domestic replacement of large semiconductor wafers began to accelerate, and domestic enterprises actively layout the production capacity of 8-inch and 12-inch wafers.
Promoting development through innovation:
Youyan Semiconductor Silicon Material Co. LTD
As one of the earliest enterprises engaged in semiconductor silicon material research in China, Youyan Semiconductor Silicon Material Co., Ltd. attaches great importance to innovation, has established a mature R & D system, and actively promotes the industrialization and market application of R & D technology with user demand as the guidance.
The company's large-scale production project of large-size silicon materials for integrated circuits has realized the large-scale production of 8-inch silicon polishes and silicon materials for large-size etching equipment, and the layout of 12-inch silicon wafers. Strong support for the development of China's integrated circuit industry, while the products are exported to the United States, Japan, South Korea, China Taiwan and other regions, enjoy a good reputation and influence in the domestic and foreign markets.
See the beauty of a modern factory
"Shandong Youyan Large-scale Production Project of Large-size Silicon Materials for integrated Circuits" has been settled in Dezhou Economic and Technological Development Zone, with a total investment of 8 billion yuan, ranking the first place in Shandong Province's 2019 key projects list and the largest investment in Dezhou's integrated circuit silicon material industry project so far.
In the first phase, a production line with an annual output of 2.76 million 8-inch wafers will be built, and in the second phase, a production line with an annual output of 3.6 million 12-inch wafers will be built. The project aims at the weaknesses of major strategic industries and fills the gaps in related fields in Shandong Province, which is of great significance to the development of the city's new generation of information technology industry and the building of strategic emerging characteristic industrial clusters.

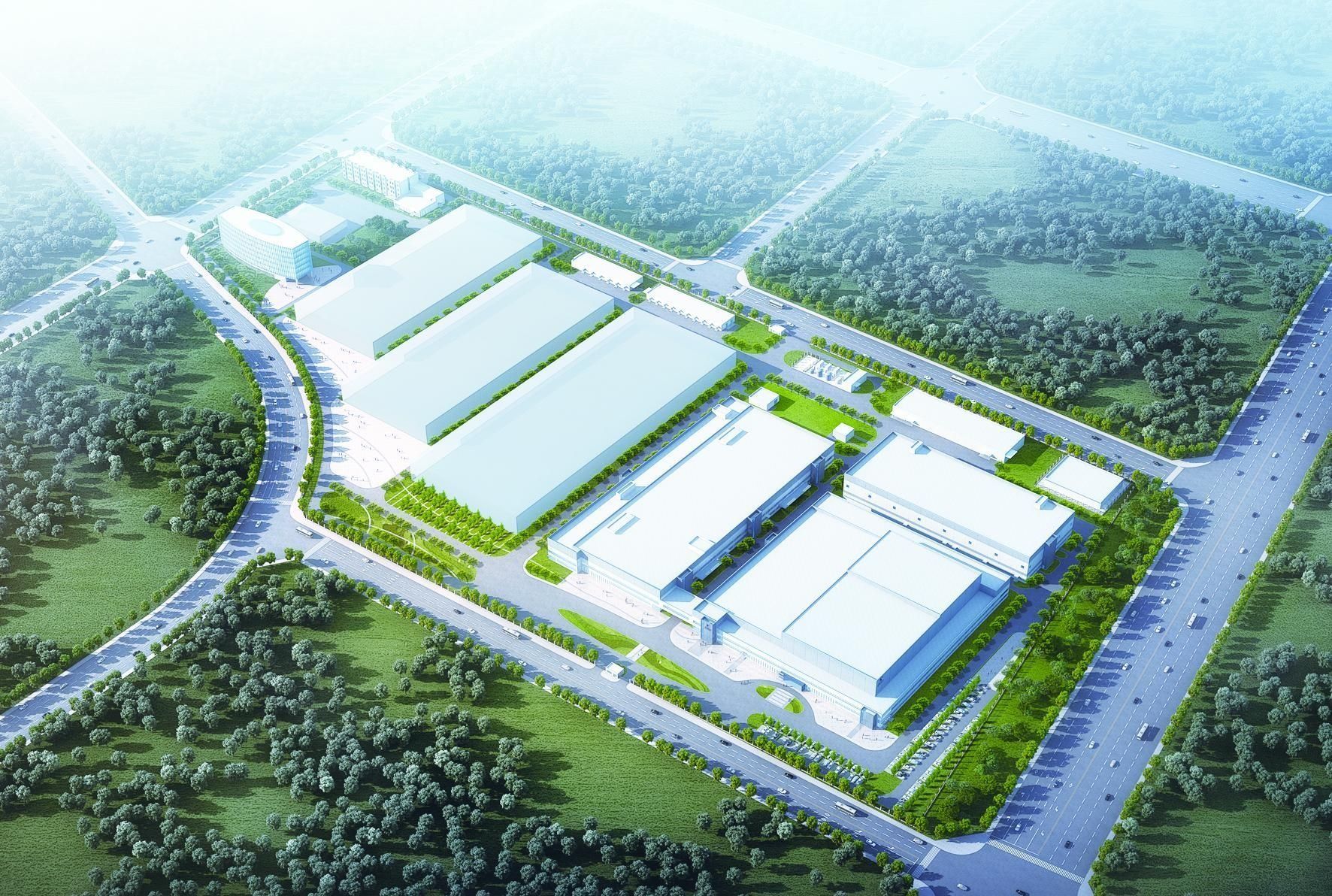

The first phase of the project covers an area of 326 mu, with a construction area of 220,000 square meters, including single crystal processing plant, silicon wafer processing plant and comprehensive power station.
The exterior walls of the three individual buildings are all equipped with Wiskind's sandwich panel system -- COLORPOD ®Sandwich Panel. This sandwich panel uses staggered double support notches and polyurethane edging to provide excellent air tightness, water tightness and insulation performance.
Among them, Wiskind's new generation of 3D three-dimensional gasket improves the bearing capacity of the steel plate at the screw and the strength of the groove support, giving the exterior wall super wind resistance.
The plates are prefabricated in the factory and quickly installed on site, realizing the high efficiency and accuracy of prefabricated installation. Greatly improve the construction speed, shorten the construction period. And can also greatly reduce the production of construction waste and pollutants, in line with the concept of sustainable development.
Exterior wall design is not only practical, but also beautiful. The exterior walls of the project are dark grey, light grey and white, creating a layered look. White occupies most of the area, with light gray interspersed among them, bringing a refreshing sense of modernity and technology. The addition of dark gray adds a rigorous and stable atmosphere.
The overall color combination makes the industrial building highlight the professional and modern sense, but also brings us visual enjoyment.
Conclusion
With the gradual rise of new energy vehicles, artificial intelligence, the Internet of Things and other emerging industries, as a new demand growth point for semiconductor silicon wafer industry, also provides a huge market space for the development of semiconductor silicon wafer enterprises. With the continuous expansion of the application field, the semiconductor wafer industry will also have a broad development prospect.
As a professional metal envelope manufacturer and service provider, wiskind will continue to upgrade technology and make technological breakthroughs. Adhering to the mission of green building enabled by technology and innovation, mastercard will explore more intelligent, green and sustainable building envelope solutions to help the steady development of high-tech industry!
